Detailed Images
|

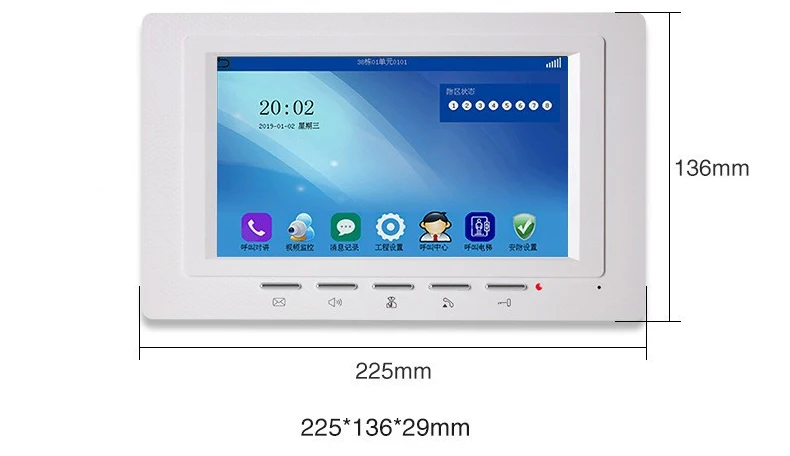

Indoor monitor BH-01C7 |
Function introduction | visual intercom with the host, unlocking, monitoring, no disturbance |
| Display | TFT-LCD 7-inch Digital HD LCD | |
| Resolution | 800 * 680 | |
| Power supply | input voltage: AC 100v-240v, output voltage: DC15V 1.2A power consumption: standby ≤ 1W, working ≤ 10W | |
| Ringtone | 36 harmonica music | |
| Wiring mode | one pulling one rvv4 core wire connection | |
| Appearance dimension | length 226 * width 135 * thickness 26mm | |
| Material | ABS engineering plastics | |
| Weight | 0.5kg | |
|
Outdoor station BH-01 |
Function Description | visual, intercom, unlock, infrared night vision, rainproof |
| Camera | 700 line CMOS color digital HD camera with super backlight | |
| compensation power consumption | standby 0W, working ≤ 2W | |
| Power supply mode | indoor extension power supply | |
| Night vision | 4 LED infrared night fill lights | |
| Best night vision distance | 0.2-1.0m | |
| Camera angle | 120 degrees | |
| Operating temperature range | – 20 – + 60 ℃ | |
| material | zinc alloy shell + acrylic panel | |
| Installation method | surface mounted | |
| Overall dimension | length 130 * width 61 * thickness 38mm (upper part of rain cover 45mm) | |
| weight | 0.35kg |
Product Description

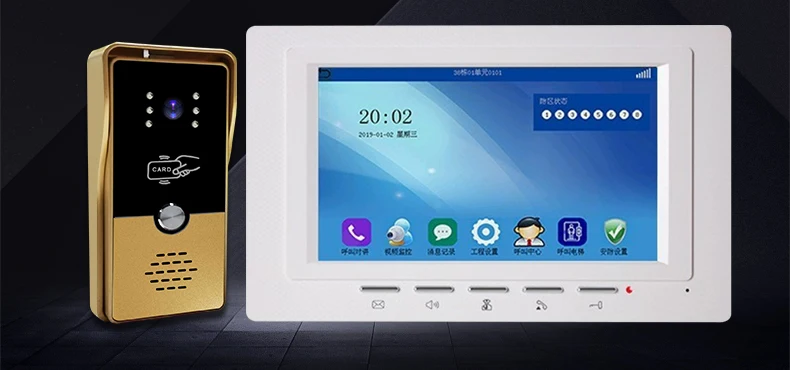

Video doorbell set
product size: Outdoor unit
7 inch screen indoor unit
1080p HD color screen
HD intercom doorbell Dual way Intercom
HD camera 120 °
Induction white Infrared night No night
light effect vision effect vision effect
24 hour monitoring
Product accessories
Suitable for installation in homes and villas
