Products Description
√1 indoor monitor & 1 outdoor camera as a kit: 7 inch TFT color screen and high-definition camera
√Cloud storage and memory card supported. monitor maximum support 32GB external TF memory card(Not include)
√Coming with IR Sensor, IR LEDs will turn On/off Automatically.
√IP65 waterproof design,work stable in rainy,cloudy,cold and snow day.
√6 Ring tones Optional. You can set different ring tones and volume level as you need.
√”TuyaSmart” App supported. Easily connect the monitoring to more than one smartphone in less than two minutes. Quite simple
operation!
√ Device can be shared to 6 family members in Tuya APP.
√Multiple-devices Connection. The doorbell can be connected to more Monitors for different needs. And it can be connected to electric locks to remotely unlock the door.
√2 Wires-Cable Connection. You can buy extra longer wire to extend the distance according to your need.
√2 external power adapter (The DC18V and DC5V) included for base installation.(18V power adapter for indoor monitor and outdoor unit powered by indoor monitor)
√ 2 connecting cable included for testing. Entension cable should be purchased separately for different needs.
Note:
The doorbell and moniton separate is only compatible with our doorbell system and can not be working alone. You can buy extra doorbell/monitor for your need.
√Cloud storage and memory card supported. monitor maximum support 32GB external TF memory card(Not include)
√Coming with IR Sensor, IR LEDs will turn On/off Automatically.
√IP65 waterproof design,work stable in rainy,cloudy,cold and snow day.
√6 Ring tones Optional. You can set different ring tones and volume level as you need.
√”TuyaSmart” App supported. Easily connect the monitoring to more than one smartphone in less than two minutes. Quite simple
operation!
√ Device can be shared to 6 family members in Tuya APP.
√Multiple-devices Connection. The doorbell can be connected to more Monitors for different needs. And it can be connected to electric locks to remotely unlock the door.
√2 Wires-Cable Connection. You can buy extra longer wire to extend the distance according to your need.
√2 external power adapter (The DC18V and DC5V) included for base installation.(18V power adapter for indoor monitor and outdoor unit powered by indoor monitor)
√ 2 connecting cable included for testing. Entension cable should be purchased separately for different needs.
Note:
The doorbell and moniton separate is only compatible with our doorbell system and can not be working alone. You can buy extra doorbell/monitor for your need.
Dual-Way Communication
Dual-way intercom system with low power consumption and high definition. 7 inch TFT LCD display monitor,touch button operation, remote unlock, real-time surveillance, hands free, easy and convenient speak to anyone at your door.
Dual-way intercom system with low power consumption and high definition. 7 inch TFT LCD display monitor,touch button operation, remote unlock, real-time surveillance, hands free, easy and convenient speak to anyone at your door.
IR Night Vision
Equipped with IR LED for night view, it ensure you a crystal view even in night. Night vision function protect your home day and night. Keep your home safe at night.
Equipped with IR LED for night view, it ensure you a crystal view even in night. Night vision function protect your home day and night. Keep your home safe at night.
Automatically Snapshot or Record
When visitor press the doorbell, the camera will automatically snapshot or recording and save in cloud storage which can viewed in tuya app. You can easily record who was at your door and improve your home security.
When visitor press the doorbell, the camera will automatically snapshot or recording and save in cloud storage which can viewed in tuya app. You can easily record who was at your door and improve your home security.
APP Unlock & Remote Control
When visitors press the call button,notification will be pushed to your phone and the indoor monitor will be awoke, just press the Unlock/Gate Door Open button on indoor monitor/cellphone; Also supports 2-way talk between indoor monitor/APP user and outdoor camera.
When visitors press the call button,notification will be pushed to your phone and the indoor monitor will be awoke, just press the Unlock/Gate Door Open button on indoor monitor/cellphone; Also supports 2-way talk between indoor monitor/APP user and outdoor camera.
Multiple Intercom & Multi-device Connection
Up to 2 doorbells can be connected with 4 indoor monitors;Support connect additional 2x electronic locks;Leading four-channels display at your monitor. You can share with your family to monitor the outdoor environment anytime.

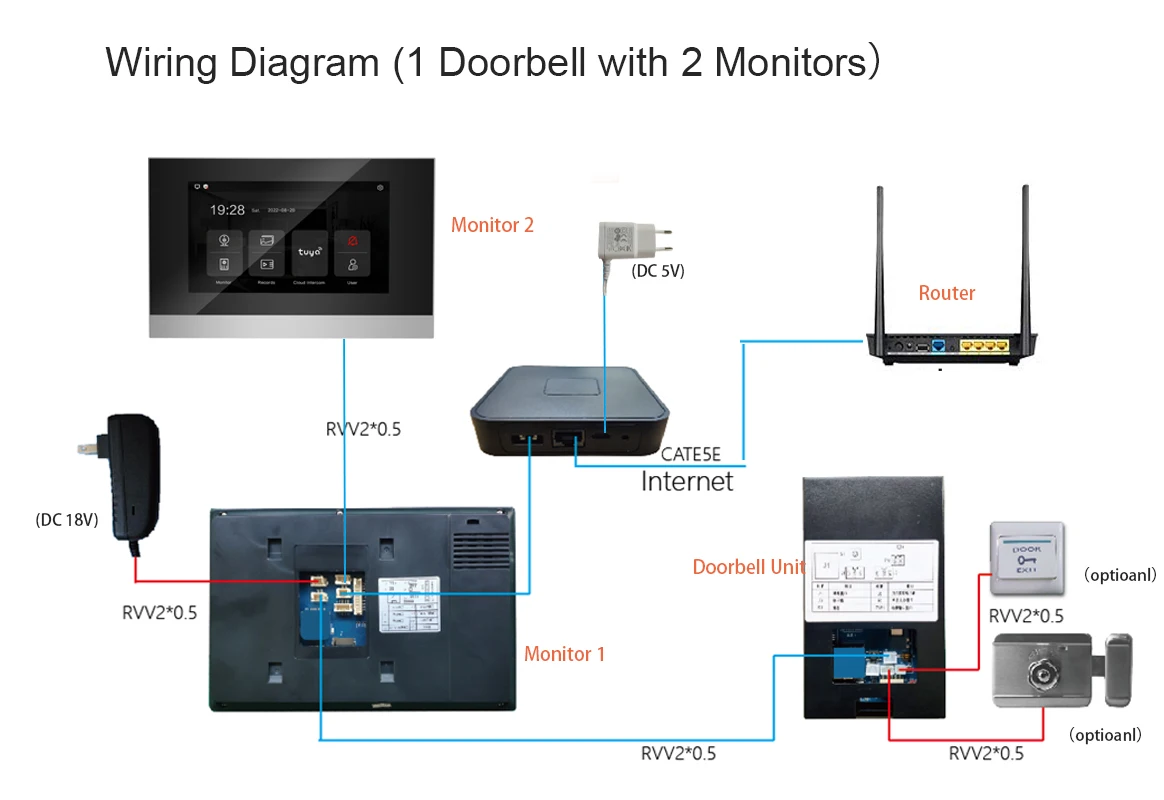

Wiring Diagram
Basic Connection Configuration (no connection to internet without Tuya function):
Note:
1. It is unnecessary to connect to the IP gate box when Tuya app remote control function is not needed.
2. Most electric locks should be powered by extra power supply which is not included in this kit.
3. Please change the router gateway IP address to “192.168.1.1” to provide internet signal for tuya connection.
1. It is unnecessary to connect to the IP gate box when Tuya app remote control function is not needed.
2. Most electric locks should be powered by extra power supply which is not included in this kit.
3. Please change the router gateway IP address to “192.168.1.1” to provide internet signal for tuya connection.
|
Product name & model:
|
Indoor Monitor Screen JD-V6R07M01A-T/C/V/2
|
||||||
|
Operation System:
|
Linux
|
||||||
|
Color:
|
Black
|
||||||
|
LCD Screen:
|
7 inch TFT-LCD
|
||||||
|
Resolution:
|
1024×600
|
||||||
|
Ringtone:
|
6 Chord
|
||||||
|
Power Supply:
|
External DC18V Power Adapter (included)
|
||||||
|
Working Voltage/Currency:
|
DC15V~24V/350mA
|
||||||
|
Working Temperature:
|
-20℃- 55℃
|
||||||
|
Wiring:
|
RVV2 Cable (2 Wires Cable)
|
||||||
|
Wall mounting
|
Wall mounting
|
||||||
|
Dimension:
|
218*138*25mm(L/W/H) /8.6*5.4*1inch
|
||||||
|
Material:
|
Metal
|
||||||
|
System:
|
Max Support 4*Indoor Monitor + 2*Outdoor Doorbell+2* Electric Lock
|
||||||
|
Product name & Model:
|
Outdoor Camera Doorbell JD-V6VD00M01A-IC/2
|
||||||
|
Camera Lens:
|
CMOS
|
||||||
|
Camera Resolution:
|
2.0M Pixels
|
||||||
|
Camera Lens:
|
CMOS
|
||||||
|
LED Night:
|
LED infrared light
|
||||||
|
Angle:
|
110 degrees
|
||||||
|
Night Vision:
|
IR LED light, visible Within 5 Meters
|
||||||
|
Power Supply:
|
By indoor monitor
|
||||||
|
Working Temperature:
|
-20℃- 70℃
|
||||||
|
Wiring:
|
2 Wires Cable
|
||||||
|
Installation:
|
Embedded mounting/Wall mounting
|
||||||
|
Dimension:
|
154×85×45.5mm(L/W/H) / 6*3.3*1.8inch
|
||||||
|
Material:
|
Metal
|
||||||
|
Waterrpoof level
|
IP65
|
||||||
1 What Do you Supply?
Video Intercoms for Villa&Building
Video Doorbell Camera
Video Peephole Camera
Audio Intercom Phones
2 What kind of OEM/ODM service do you provide?
1) logo Print
2) UI Interface
3) Functions and Softwares
4) Material and Structure
5) Packaging Box
6) Other Ideas on Products
1) logo Print
2) UI Interface
3) Functions and Softwares
4) Material and Structure
5) Packaging Box
6) Other Ideas on Products
3 Can we order sample before the mass production?
Yes.We will arrange the sample order and shipment to your country directly.
Yes.We will arrange the sample order and shipment to your country directly.
4 What’s the order lead time?
Sample order: 1-3 days
Bulk order: Current Stock 7-30 days; Customized order as agreement
Sample order: 1-3 days
Bulk order: Current Stock 7-30 days; Customized order as agreement
5 How about your after-sale service?
Customer first
Product 2 years warranty
Spare parts for replacement
Engineers with 10 years experience in the field of video intercoms to provide technical support anytime
Customer first
Product 2 years warranty
Spare parts for replacement
Engineers with 10 years experience in the field of video intercoms to provide technical support anytime
6 How about your quality control?
PCB board 90% made by SMT, to low down defective rate
Aging and test at least 24hours to ensure the stability
Quality inspection 100% piece by piece before delivery
PCB board 90% made by SMT, to low down defective rate
Aging and test at least 24hours to ensure the stability
Quality inspection 100% piece by piece before delivery
7 What certificates do you have?
CE, FCC, ROHS, ect. Any certificates provided as required
CE, FCC, ROHS, ect. Any certificates provided as required
